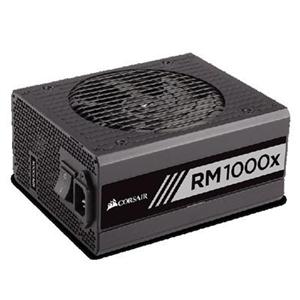

Corsair RMx Series RM1000x - 1000 Watt 80 PLUS Gold Certified Fully Modular Power Supply Unit

UPC Code: 840006603559

Technical Information

Specification Compliance:   ATX12V/EPS12V
Efficiency:   90%
Number of Fans:   1
Modular:   Yes

Power Description

Input Voltage:   230 V AC
Input Voltage:   120 V AC
Number of +12V Rails:   1
Output Voltage:   5 V DC @ 25 A
Output Voltage:   - 12 V DC @ 800 mA
Output Voltage:   12 V DC @ 83.30 A
Output Voltage:   5 V DC @ 3 A
Output Voltage:   3.3 V DC @ 25 A
Output Power:   1 kW

Physical Characteristics

Form Factor:   Internal
Height:   3.39" (86 mm)
Width:   7.09" (180 mm)
Depth:   5.91" (150 mm)
Weight (Approximate):   2 kg

Miscellaneous

Package Contents:

• RMx Series RM1000x - 1000 Watt 80 PLUS Gold Certified Fully Modular PSU
• AC Power Cord
• DC Modular Cable Set
• DC Modular Cable Storage Bag
• Cable Ties
• Corsair Case Badge
• User Manual

Compatibility:   6th generation Intel Core processor Ready (Intel Skylake and Z170 motherboards)
Environmentally Friendly:   Yes
Environmental Certification:   WEEE
Environmental Certification:   RoHS
Environmental Certification:   China RoHS
Environmental Certification:   80 Plus Gold
Environmental Certification:   REACH
Environmental Certification:   TÜV

Warranty

Limited Warranty:   7 Years Manufacture
