Intel SSDPF2KX076TZ01

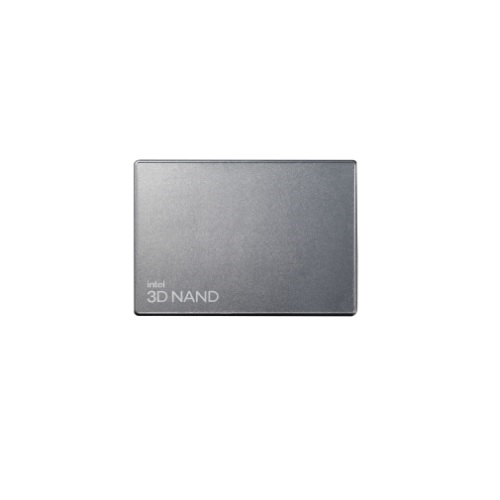

Intel D7-P5510 7.68TB 2.5 PCIe 4.0 x4 NVMe 7K Mb/s Read - SSDPF2KX076TZ01 internal Solid State Drive

Intel D7-P5510 7.68 TB Solid State Drive - 2.5" Internal - U.2 (SFF-8639) NVMe (PCI Express NVMe 4.0 x4) - Server Device Supported - 14336 TB TBW - 7000 MB/s Maximum Read Transfer Rate - 256-bit Encryption Standard - 1 Pack



Detail Specifications

  Essentials
Product Collection
Intel SSD D7 Series
Code Name
Products formerly Arbordale Plus Refresh
Capacity
7.68 TB
Lithography Type
144L TLC 3D NAND
Use Conditions
Server/Enterprise
  Performance Specifications
Sequential Bandwidth - 100% Read (up to)
7000 MB/s
  Sequential Bandwidth - 100% Write (up to)
4194 MB/s
  Random Read (100% Span)
930000 IOPS
  Random Write (100% Span)
190000 IOPS
  Latency - Read
84 microsecond
  Latency - Write
16 microsecond
  Power - Active
less than 18W
  Power - Idle
less than 5W
  Reliability
Vibration - Operating
2.17 GRMS (5 - 700 Hz) Max
  Vibration - Non-Operating
3.13 GRMS (5 - 800 Hz) Max
  Shock (Operating and Non-Operating)
1,000 G (Max) at 0.5 msec
  Operating Temperature Range
0oC to 70oC
  Operating Temperature (Maximum)
70 oC
  Operating Temperature (Minimum)
0 oC
  Endurance Rating (Lifetime Writes)
Up to 14.0PBW (JESD219 workload)
  Mean Time Between Failures (MTBF)
2 million hours
  Uncorrectable Bit Error Rate (UBER)
less than 1 sector per 1017 bits read
  Package Specifications
Form Factor
U.2 15mm
  Interface
PCIe 4.0 x4, NVMe
  Advanced Technologies
Enhanced Power Loss Data Protection
Yes
  Hardware Encryption
AES 256 bit
  High Endurance Technology (HET)
No
  Temperature Monitoring and Logging
Yes
  End-to-End Data Protection
Yes
  Intel Smart Response Technology
No
  Intel Rapid Start Technology
No
  Intel Remote Secure Erase
No
  Item Dimension (L inchxW inchxH inch)
17 x 12 x 6

Weight
1.00 lb

Warranty Information
5 Years Manufacture Warranty
