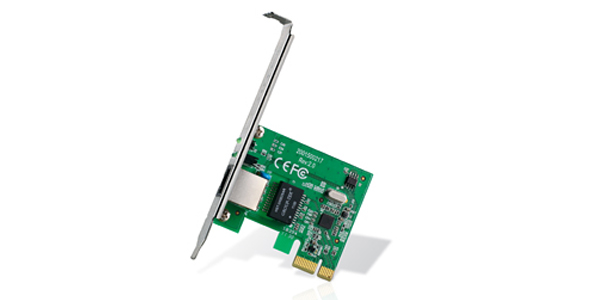

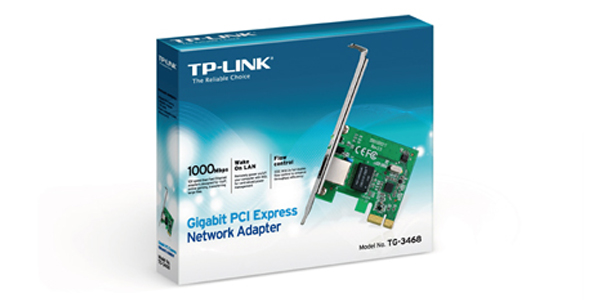

TP-Link PCI-E TG-3468 1Port 10/100/1000Mbps Gigabit PCI-Express Ethernet Network Adapter
TP-Link PCI-E TG-3468 1Port 10/100/1000Mbps Gigabit PCI-Express Ethernet Network Adapter
Key Features
| Data Transfer Rate: |
10/100/1000 Mbps |
| Manufacturer Warranty: |
2 years warranty (Manufacture) |
| Device Type: |
Network Adapter |
| Data Link Protocol: |
CSMA/CD, TCP/IP |
| Compliant Standards: |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p |
| System Requirements: |
Windows 98se/Me/2000/XP/XP64, Linux, Vista32/64 |
| Interface Type: |
32-bit PCIe 1.0a |
Detail Specifications
| |
Standards and Protocols : IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p / CSMA/CD, TCP/IP |
| |
Interface : 32-bit PCIe 1.0a |
| |
Transmission Rate : 10/100Mbps for Half-Duplex mode / 20/200/2000Mbps for Full-Duplex mode |
| |
Flow Control : IEEE 802.3x Flow Control (Full-Duplex) |
| |
Port : 10/100/1000Mbps RJ45 |
| |
Network Media :
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| |
LED Indicator : 1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex |
| |
Safety and Emission : FCC, CE |
| |
Environment :
Operating Temperature: 0C - 40C (32F - 104F)
Storage Temperature: -40C - 70C (-40F - 158F)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing |
| |
Operating System : Windows 98se/Me/2000/XP/XP64, Linux, Vista32/64 |
| |
Package Dimension (LxWxH) : 7 x 2 x 6 inch |
| |
Auto-Negotiation and Auto MDI/MDIX |
| |
Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode |
| |
Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging |
| |
Supports power down/link down power saving |
