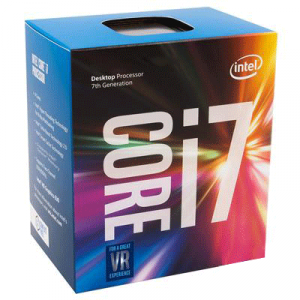

Intel i7-7700 3.60GHz Up to 4.2GHz 8MB Cache BX80677I77700 LGA1151 4C/8T Kaby Lake CPU FC-LGA14C

Intel CPU BX80677I77700 i7-7700 3.60GHz 8MB LGA1151 4C/8T Kaby Lake Retail



Detail Specifications
  Processor Number
i7-7700
  Lithography
14 nm
  Performance
of Cores: 4
of Threads: 8
Processor Base Frequency: 3.60 GHz
Max Turbo Frequency: 4.20 GHz
Cache: 8 MB
Bus Speed: 8 GT/s DMI3
of QPI Links: 0
TDP: 65 W
  Memory Specifications
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-2133/2400, DDR3L-1333/1600 1.35V
Max of Memory Channels: 2
ECC Memory Supported: No
  Graphics Specifications
Processor Graphics: Intel HD Graphics 630
Graphics Base Frequency: 350.00 MHz
Graphics Max Dynamic Frequency: 1.15 GHz
Graphics Video Max Memory: 64 GB
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x230424Hz
Max Resolution (DP): 4096x230460Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x230460Hz
DirectX Support: 12
OpenGL Support: 4.4
Intel Quick Sync Video: Yes
Intel InTru 3D Technology: Yes
Intel Clear Video HD Technology: Yes
Intel Clear Video Technology: Yes
of Displays Supported: 3
Device ID: 0x5912
  Expansion Options
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4
Max of PCI Express Lanes: 16
  Package Specifications
Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2015C (65W)
TJUNCTION: 100oC
Low Halogen Options Available: See MDDS
  Advanced Technologies
Intel Turbo Boost Technology: 2.0
Intel vPro Technology: Yes
Intel Hyper-Threading Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel TSX-NI: Yes
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Intel Identity Protection Technology: Yes
Intel Stable Image Platform Program (SIPP): Yes
  Intel Data Protection Technology
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel Memory Protection Extensions (Intel MPX): Yes
  Intel Platform Protection Technology
OS Guard: Yes
Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel Device Protection Technology with Boot Guard: Yes
  Item Dimension (L"xW"xH")
4 x 3 x 4

Weight
0.75 lb

Warranty Information
1 year Manufacture



Intel i7-7700 3.60GHz Up to 4.2GHz 8MB Cache BX80677I77700 LGA1151 4C/8T Kaby Lake CPU FC-LGA14C

  • Part Number: 11517
  • Brand: Intel
  • Product Sku: BX80677I77700
  • Richmond BC Warehouse:
    Calgary AB Warehouse:
    Markham ON Warehouse:
    Back order
    Guelph ON Warehouse:
    Back order
    Halifax NS Warehouse:
  • Availability: Call

  • $409.95

  • Was: $614.92
